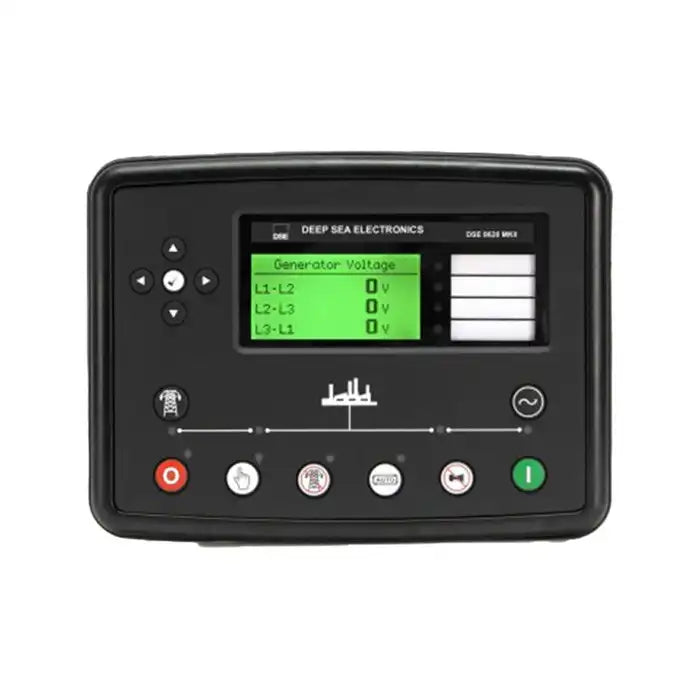

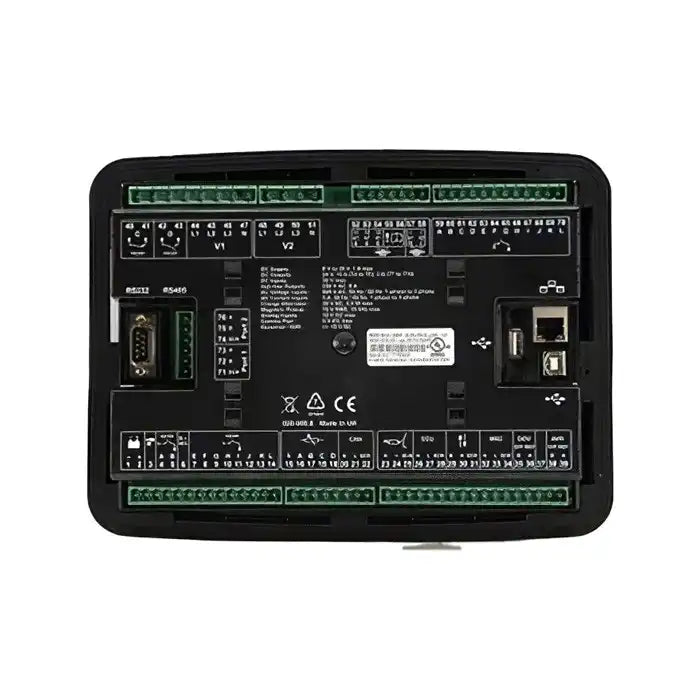

Deep Sea DSE8620 Auto Mains (Utility) Failure Generator Controller
Part NO.:
DSE8620
Specifications:
DC SUPPLY
CONTINUOUS VOLTAGE RATING:8 V to 35 V Continuous
MAXIMUM OPERATING CURRENT:460 mA at 12 V, 245 mA at 24 V
MAXIMUM STANDBY CURRENT:375 mA at 12 V, 200 mA at 24
CHARGE FAIL/EXCITATION RANGE:0 V to 35 V
OUTPUT A (FUEL):15 A DC at supply voltage
OUTPUT B (START):15 A DC at supply voltage
OUTPUTS C & D:8 A 250 V (Volt free)
AUXILIARY OUTPUTS E, F, G
2 A DC at supply voltage
GENERATOR & MAINS
VOLTAGE RANGE:15 V - 333 V AC (L-N)
FREQUENCY RANGE:3.5 Hz to 75 Hz
MAGNETIC PICKUP
VOLTAGE RANGE:+/- 0.5 V to 70 V
FREQUENCY RANGE:10,000 Hz (max)
BUILT-IN GOVERNOR AND AVR CONTROL
MINIMUM LOAD IMPEDANCE:1000 Fully isolated
GAIN VOLTAGE:0 V to 10 V DC Fully isolated
OFFSET VOLTAGE:+/- 10 V DC Fully isolated
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
| Part Number | DSE8620 |
