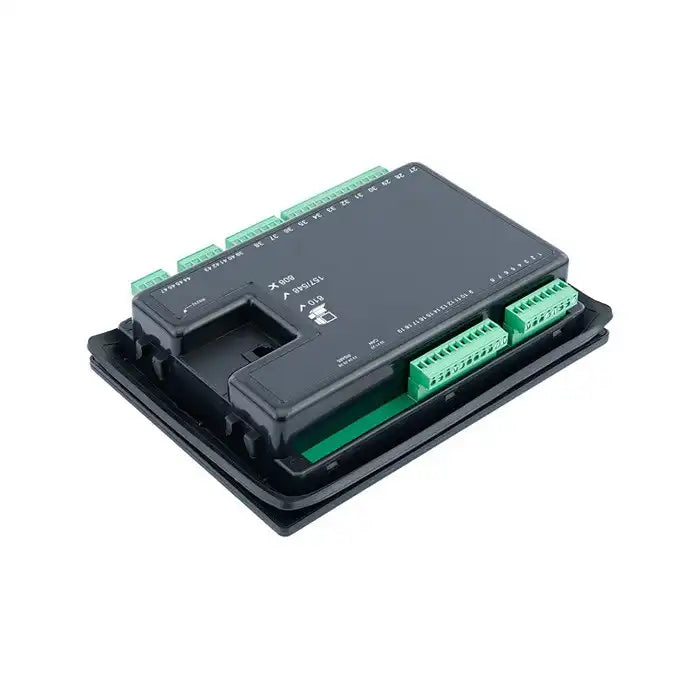

Generator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea
Part NO.:
DSE5120
Specifications:
Exchange phase VoltagePower Supply:8 to 35 Vdc ContinuousCranking Dropouts:Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the need for internal batteries.Max Current:Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24VStart Relay Output:16 Amp DC at supply voltage.Fuel Relay Output:16 Amp DC at supply voltage.Auxiliary Relay Outputs:5 Amp DC at supply voltage.Charge Fail / Excitation Range 0 V to 35 VAlternator Input Range: 15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%)Alternator Input Frequency:50 - 60 Hz at rated engine speed (Minimum:15V AC Ph-N)Magnetic Pick-up Voltage Input Range: +/- 0.5 V to 70 V PeakMagnetic Input Frequency:10, 000 Hz (max) at rated engine speedOperating Temperature Range:-30 to +70°CPanel Cutout:220mm x 160mm ( 8.7” x 6.3”)
Applications:
Deep Sea
| Part Number | DSE5120 |
Generator Controller DSE5120 Module Control Panel Genset Parts for Deep Sea for sale on our website.
