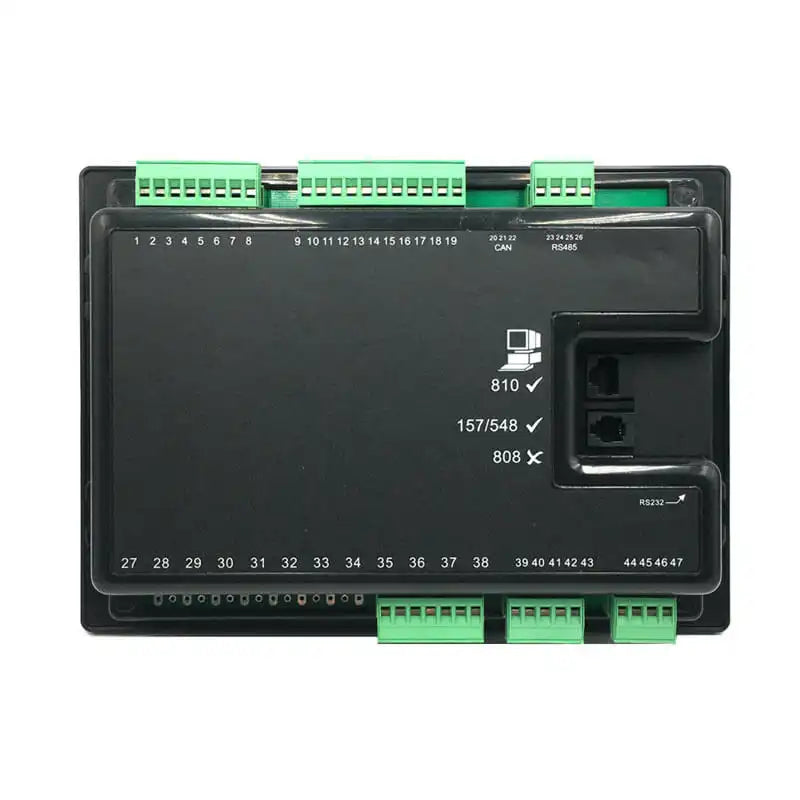

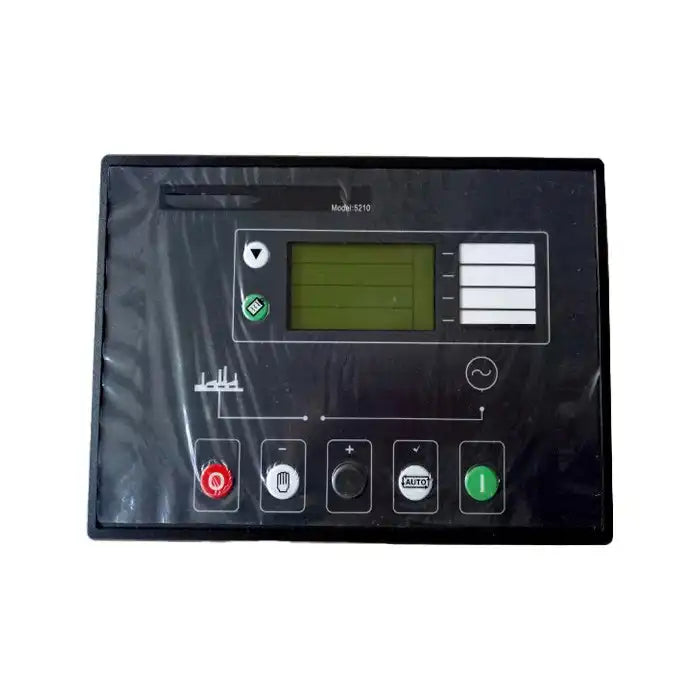

Generator Controller DSE5210 Electronic Module Genset Parts for Deep Sea
Part No. :
DSE 5210
Specification:
Power Supply: 8 to 35 Vdc Continuous
Max Current: Operating 425mA at 12 V & 215mA at 24 V; Standby 250 mA at 12 V & 125 mA at 24 V.
Start Relay Output: 16 Amp DC at supply voltage.
Fuel Relay Output: 16 Amp DC at supply voltage.
Auxiliary Relay Outputs: 5 Amp DC at supply voltage.
Charge Fail / Excitation Range: 0 V to 35 V
Maximum operating current : 320ma at 12V, 215ma at 24v
Maximum operating current : 175ma at 12V, 95ma at 24v
Alternator Input Range: 15V(L-N) to 333V AC (L- N) absolute maximum
Alternator Input Frequency: 50 – 60 Hz at rated engine speed (Minimum: 15V AC Ph-N)
Magnetic Pick-up Voltage Input Range: +/- 0.5 V to 70 V Peak
Magnetic Input Frequency: 10,000 Hz (max) at rated engine speed
Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V, Before dropout and supply recovers to 5V.
Application:
For Deep Sea
| Part Number | DSE 5210, DSE5210 |
