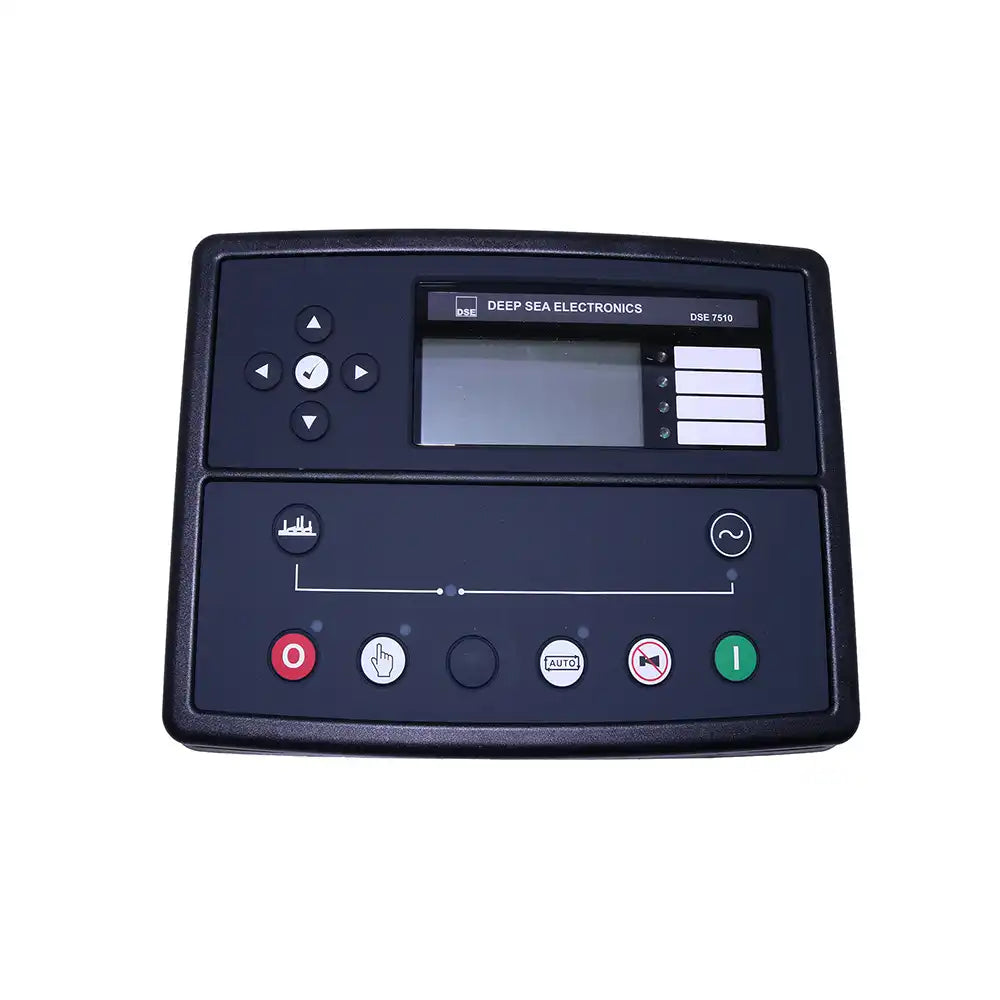

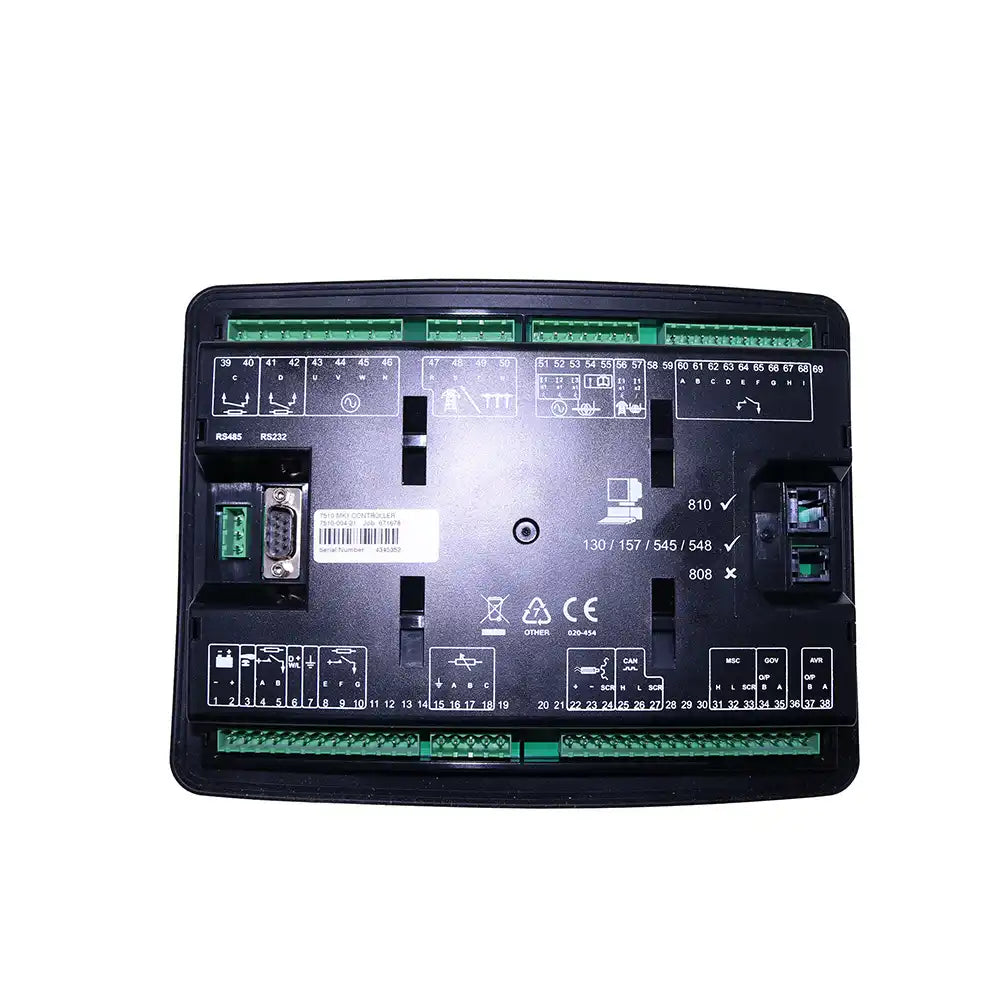

Generator Controller DSE7510 for Deep Sea Auto Start Control Module
Part NO.:
DSE7510
Specification:
DC SUPPLY
CONTINUOUS VOLTAGE RATING: 8 V to 35 V continuous
CRANKING DROPOUTS
MAXIMUM OPERATING CURRENT: 460 mA at 12 V, 245 mA at 24 V
MAXIMUM STANDBY CURRENT: 375 mA at 12 V, 200 mA at 24 V
CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
OUTPUTS
OUTPUT A (FUEL): 15 A DC at supply voltage
OUTPUT B (START): 15 A DC at supply voltage
OUTPUTS C & D: 8 A 250 V (Volt free)
AUXILIARY OUTPUTS E, F, G: 2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE: 15 V - 333 V AC (L-N)
FREQUENCY RANGE: 3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE: +/- 0.5 V to 70 V
FREQUENCY RANGE:10, 000 Hz (max)
BUILT-IN GOVERNOR CONTROL
Fully Isolated
Minimum Load Impedance: 1000Ω
Gain Volts 0 V - 10 V DC
Offset Volts + / - 10 V DC
BUILT-IN AVR CONTROL
Fully Isolated
Minimum Load Impedance: 1000Ω
Gain Volts 0 V - 10 V DC
Offset Volts + / - 10 V DC
DIMENSIONS
240 mm x 172 mm x 57 mm(9.4” x 6.8” x 2.2”)
PANEL CUT-OUT: 220 mm x 160 mm(8.7” x 6.3”)
MAXIMUM PANEL THICKNESS: 8 mm
Application:
Deep Sea Auto Start Control Module
| Part Number | DSE7510 |
