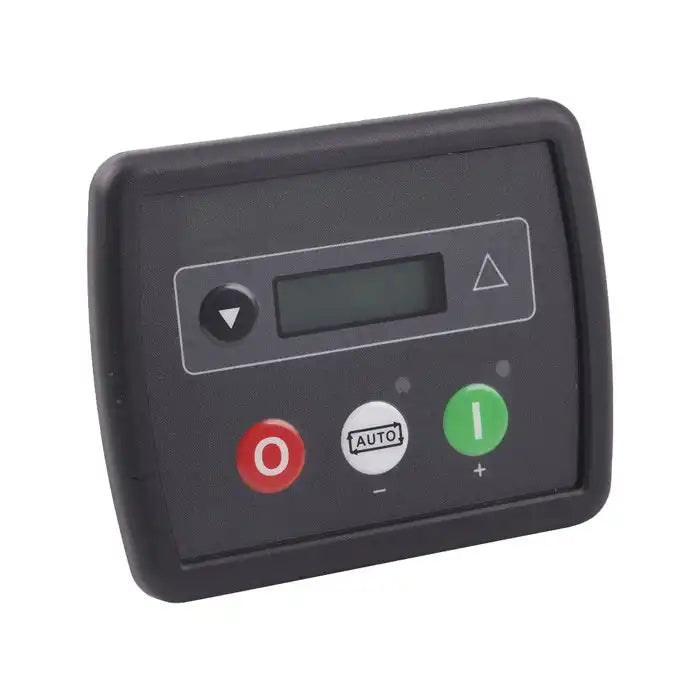

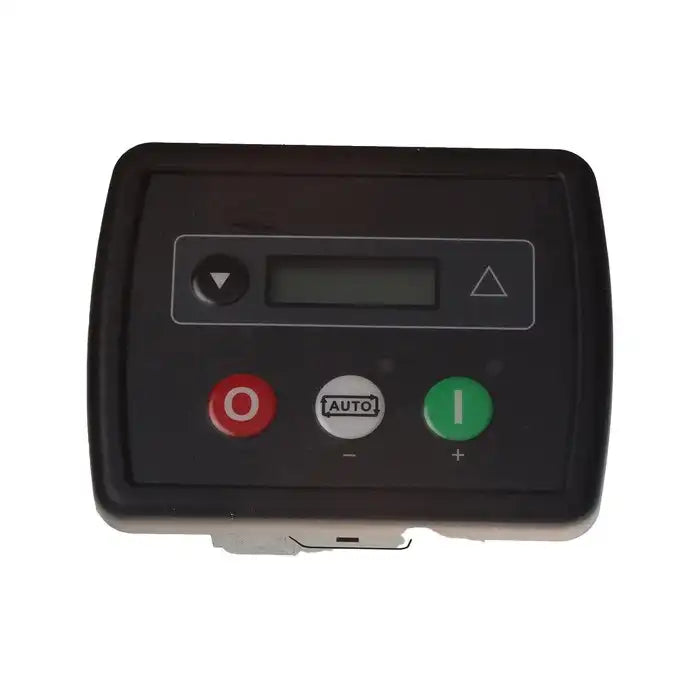

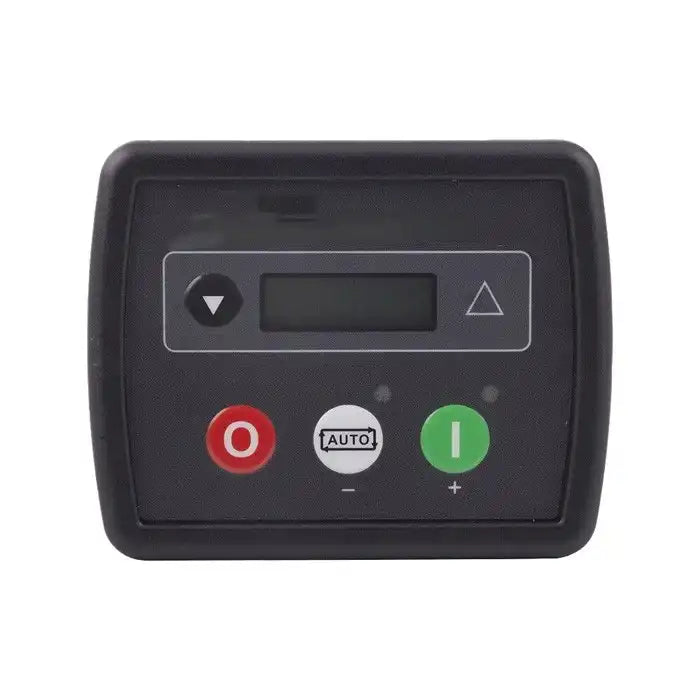

Generator Controller Module DSE3110 MPU for Deep Sea
Part No.:
DSE3110
Specification:
DC Supply
ContinuousVoltage Rating: 8 to 35 V Continuous.
Cranking Dropouts: Able to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achineved without the need for internal batteries.
Charge Fail/ Excitation: 8 to 35 V fixed power source 2.5W
Nominal Standby Current: 23 mA at 12 V, 18 mA at 24 V
MAXIMUM OPERATING CURRENT: 35 mA at 12 V, 30 mA at 24 V
Outputs
OUTPUT A (FUEL): 2 A DC at supply voltage
OUTPUT B (START): 2 A DC at supply voltage
AUXILIARY OUTPUTS C & D: 2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE: 15 V - 333 V AC (L-N)
FREQUENCY RANGE: 3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE: 0.5v to 70v
FREQUENCY RANGE: 10,000 Hz (max)
DIMENSIONS
OVERALL: 9.8 cm x 7.9 cm x 4.0 cm
PANEL CUT-OUT: 8 cm x 6.8 cm
MAXIMUM PANEL THICKNESS: 8 cm
Feature
Back-lit icon LCD display
Front panel editing
LED and LCD alarm indication
Power Save mode
CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)
PC configurable
6 Digital inputs
4 Outputs (2 configurable on Magnetic Pick up/Alt., 4 configurable on CAN version)
Application:
For Deep Sea
| Part Number | DSE3110 |
Generator Controller Module DSE3110 MPU for Deep Sea for sale on our website.
In addition to this Generator Controller Module DSE3110 MPU, you can also buy other models or other parts of Excavators, Forklift, Aerial Work Platforms AWP and etc. on our website.
