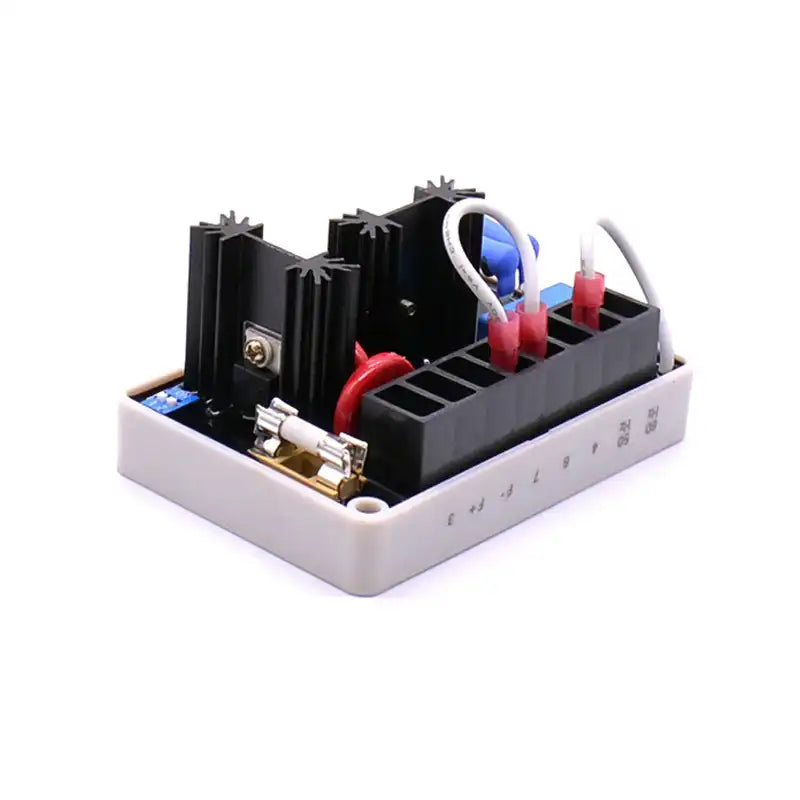

Automatic Voltage Regulator AVR EA350 for Kutai Generator Genset
Specification:
Voltage regulation < +/-1%
Toggle switch selects single-phase 120/240 Vac detection voltage
Select 50/60 Hz with a connecting cable
Low frequency protection and high interrupt capacity fuse protection
EMI suppression circuit
Detection and power input voltage 120 (85 – 135) / 220 (190 – 240) Vac single phase two line with toggle switch selection
Frequency 50/60 Hz with cable selection
Magnetic field output voltage
36 Vdc at 120 Vac input
Up to 73 Vdc at 240 Vac input
Current continuous 3.5A non-continuous 10 seconds 7A
Resistance minimum 15 Ω max 100 Ω
Voltage regulation is less than +/-1% (engine speed is within 4%)
Voltage is established. The AVR input terminal needs to have a residual magnetic voltage of 5Vac or more.
EMI suppression built-in EMI filter
External voltage adjustment +/-5% with 1 kΩ 1 watt potentiometer
+/-10% with 2 kΩ 1 watt potentiometer
Power consumption up to 8 watts
Low frequency protection (factory setting) 50 Hz system turning point is 45 – 51 Hz
60 Hz system turning point is 54 – 61 Hz
Working environment Operating temperature -40 to +60 °C
Storage temperature -65 to +85 °C
Relative humidity below 95%
Vibration
1.3Gs @ 5 – 26 Hz
5.0Gs @ 52 – 1000 Hz
Feature adjustment button VOLT : Voltage adjustment
STAB : Stability adjustment
U/F : Low frequency protection turning point adjustment
Dimensions 98.7 (L) x 67.0 (W) x 47.5 (H) mm
| Part Number | EA350 |
