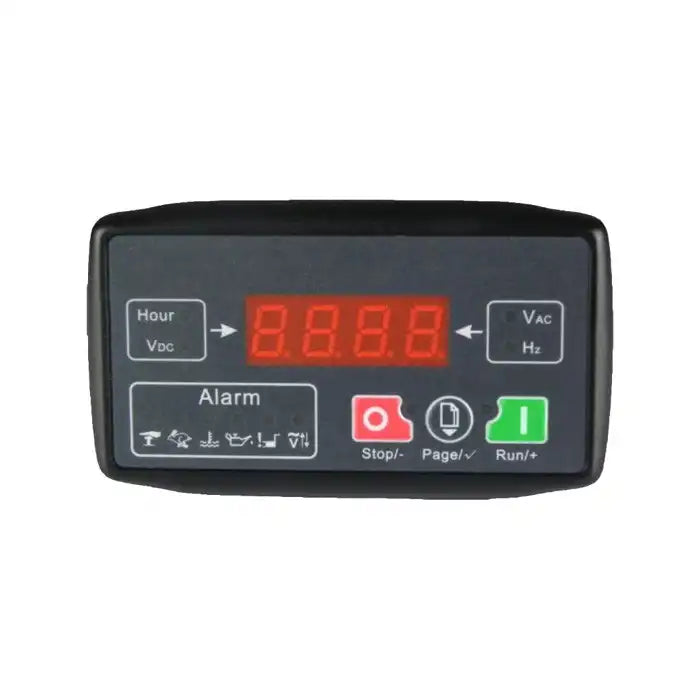

Manual Remote Start Generator Controller MGC100 for Smartgen
YOU MAY ALSO NEED
Manual Remote Start Generator Controller MGC100 for Smartgen
Specific Data:
Display: LED Nixie Tube
Operation Panel: PET
Digital Input: 4
Relay Output: 3(one transistor output)
AC System: 1P2W/2P3W/3P3W/3P4W
Alternator Voltage: (15~360)V(ph-N)
Alternator Frequency: 50/60Hz
DC Supply : DC(9-18)V
Case Dimensions(mm): 105.8*61*36.6
Panel Cutout(mm): 92*44
Operating Temp.: (-25~+70)℃
PERFORMANCE AND CHARACTERS:
Multifunctional Nixie tube display, press button to operate;
There is a red LED on the panel for displaying working and alarm status;
Chose to control Petrol Genset or Diesel Genset via connection;
Suitable for 3-phase 4-wire, 3-phase 3-wire, 2-phase 3-wire, single-phase 2-wire (120V/240V)systems with frequency 50/60/Hz;
Protection function for gen under/overvolt, over speed, fail to stop, emergency stop, high water temp, low oil pressure; when in protection, LED indicates alarm, and goes shutdown protection;
Generator rotate speed can derive from gen frequency or rotational speed sensor;
4-way digital input (high water temperature input, low oil pressure input, remote input, urgency stop input;
2 relay output(start output, fuel output) and the fuel output is flexible output;
1 flexible transistor output can be set to preheat output, alarm output, energize to stop output and idle output, etc;
Two start success conditions (rotate speed sensor, generate) can be chosen;
Parameter setting: parameters can be modified and stored in internal EEPROM memory and cannot be lost even in case of a power outage; all of them can be adjusted using the front panel of the controller;
Modular design, anti-flaming ABS plastic enclosure, embedded installation way; compact structure with easy mounting.
| Part Number | MGC100 |
