Overhaul Rebuild Kit with Liner for Kubota T1600H Tractor Z482 Engine
YOU MAY ALSO NEED
Z482 Engine Overhaul Rebuild Kit with Liner for Kubota T1600H Tractor
Note:
The Cylinder Liner is Semi-finished type
Application:
Models with Kubota Z482 Engine
Refer Kubota Tractor T1600H,T1600H-EUROPE,T1600H-G,TG1860,BX1850D,BX1860,BX1800D,BX1830D,B7300HSD,B7400HSD,B7410D,K008-3(KTC/KCL),K-008,K-008(=20001),ZD18,ZD18F,ZD21,ZD21F,ZD221,ZD321,ZD321N,U15,GF1800,GF1800E,G2160/G2160-DS/G2160AU,G1900,G1900-S,GR2100,GR2110,GR2120,GR2120B,not only these models.
Piston Part Number:
16851-21114,1685121114
Piston Ring Part Number:
16853-21050,1685321050
Cylinder Liner Part Number:
16851-02310,1685102310
Piston Size:
Total Length(TL):59.0mm
Diameter:
67mm
Cylinder Liner Size:
Total Length(TL):135.0mm
Inner Diameter(ID):67.0mm
Outer Diameter(OD):70.5mm

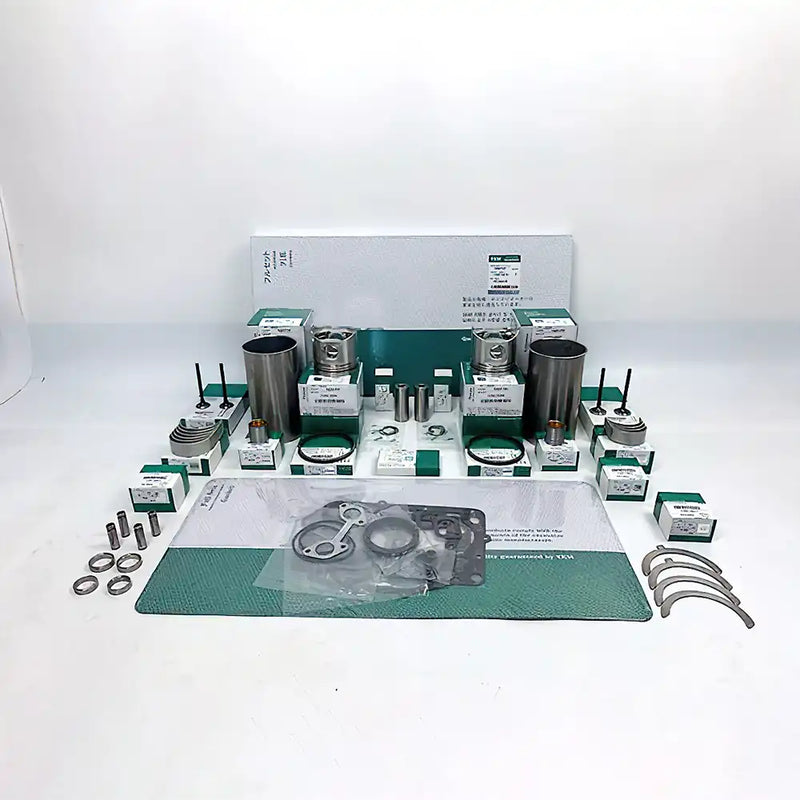

The Item contents:
2PCS Cylinder Liner, Semi-finished product
1Set Full of Gakset
2PCS Piston STD
2sets Piston Ring STD
2PCS Wrist Pin
2 Pair Cirpclip
2PCS Wrist Pin Bushes
1set Connecting Rod Bearings
1set Main Bush Bearing
1set Thrust Washer
1Set intake/exhaust Valve
1Set Valve Guide
1Set Valve Seat
·Easy repair with less maintenance.
·The Overhaul Rebuild Kits is manufactured to meet expectations for fit, form, and function.
·Please ensure this product will fit your vehicle by checking the photos or the part number with your old item before buying.
