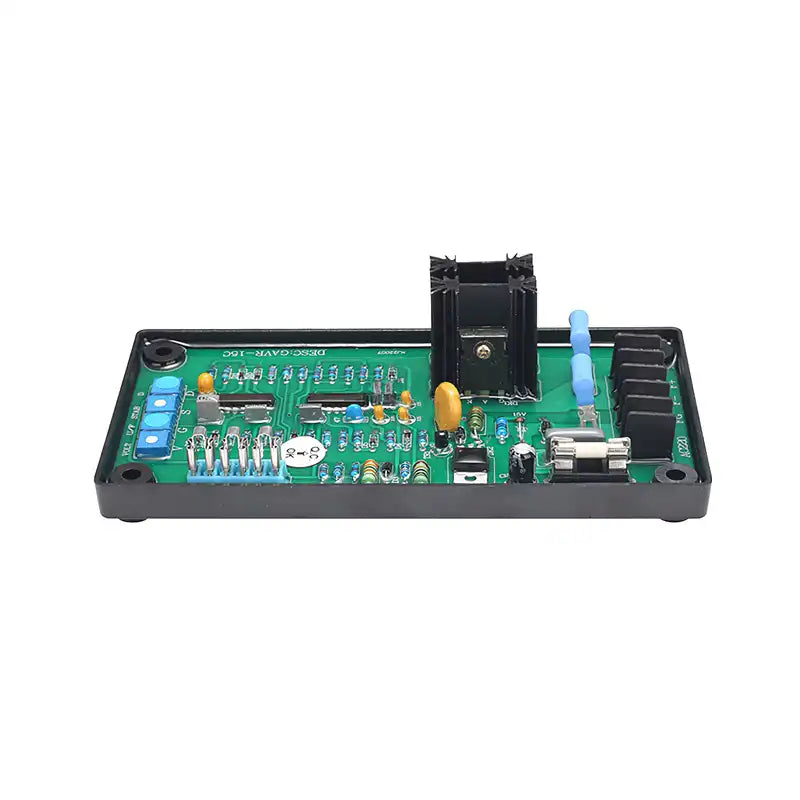

Automatic Voltage Regulator AVR GAVR-15C GAVR15C for Generator Genset Product
Product Description:
GAVR-15C generator AVR is Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmalbe Automatic Voltage Regulator.
Mains features:
1、<士0.5% Regulation
2、220/400 VAC Pmgrammahle Input
3、Rugged Compact Design
4、With Under Frequency Protection
5、Soft Start Voltage Ramping
6、EMI Suppression
7、Built-Hihg, Capacity 15Amp Fuse
Specifications:
Sensinglnput Voltage:220/400V AC, I phase2wire
PoNNerlnput Voltage:180-24OVAC,I phase2wire
Output:
Voltage:Max.9OVDC CC240VAC input
Current:Continuous 6A
Intermittent 12A for 10SEE.
Resistance:Min.10 Q Max.100 Q
Volts Regulation: <+-0.5%(with 4% engine governing)
VoltageBuild-up:Residualvolts at A VR teminal>5 VAC
External Volts Adjustment:士7%with 1 K 0 1 watt trimmer
Sotf Start Ramp Time:3sec.
Unit Power Dissipation:Maix.8Watt
EMI Suppression:Internal Electromagnetic Interference Filtering
Thermal.Drift:0.05%per0C chage in A VR ambient
Under Frequency Protection:6OHz system presets knee point at 57Hz
(Factory Settings):50Hz system presets knee point at 47Hz
Environment:
Vibration: 3G@ 100-2K Hz
Operating Temperature:-40-65 0C
Relative Humidity:<95%
Storage Temperature:-40-85 C
| Part Number | GAVR-15C, GAVR15C |
