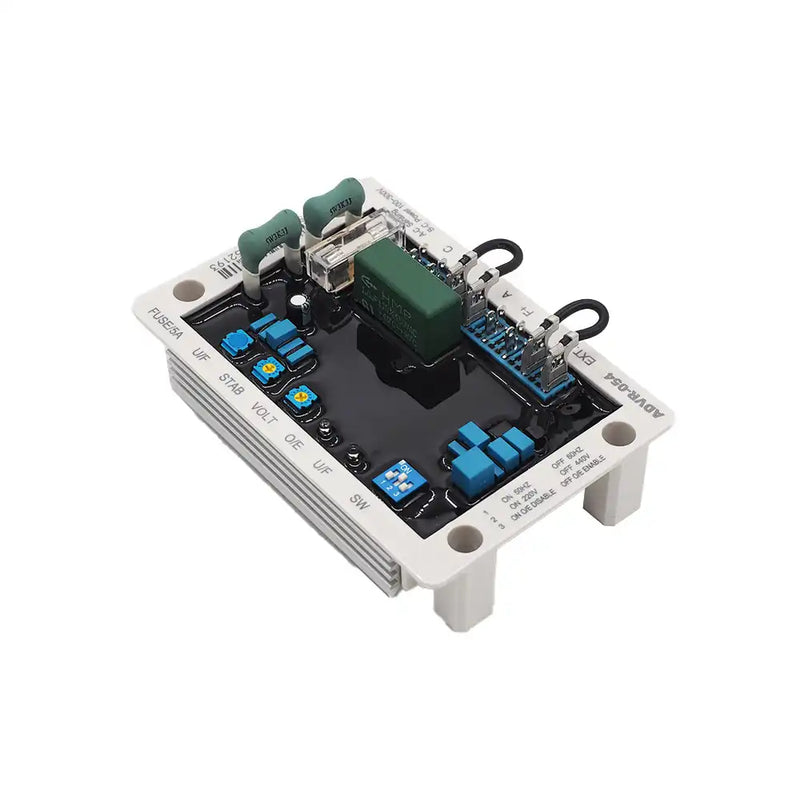

Orignal Self Excited 5Amp Automatic Voltage Regulator ADVR-054
YOU MAY ALSO NEED
Orignal Self Excited 5Amp Automatic Voltage Regulator ADVR-054
Part NO.:
ADVR-054, ADVR054
Condition:
New Orignal
Specifications:
Sensing Input(Average Reading):
Voltage 170 to 260 Vac @ 220 Vac 1 phase 2 wire
Voltage 340 to 520 Vac @ 440 Vac 1 phase 2 wire 220/440 Vac (DIP switch setting)
Frequency 50/60 Hz (DIP switch setting)
Power Input:
Voltage 100 to 300 Vac 1 phase 2 wire
Frequency 40 to 60 Hz
Excitation Output:
220 Vac 1 phase continuous 63 Vdc 5A Max. 90 Vdc 7A for 10 seconds
Resistance Min. 15 ohms
Max. 100 ohms
External Voltage Adjustment:
Max +/-3.5% @ 1K ohm 1 watt potentiometer
Voltage Regulation:
Less than +/-0.5% (with 4% engine governing)
Build Up Voltage:
5Vac 25Hz residual volts at power input terminal
Soft Start Ramp Time:
3 seconds +/-10%
EMI Suppression:
Internal electromagnetic interference filtering
Static Power Dissipation:
Max. 8 watts
Under Frequency Protection (Factory Presets):
50 Hz system presets knee point at 45 Hz
60 Hz system presets knee point at 55 Hz
Over Excitation Protection:
78 Vdc +/-6% @ 220 Vac Time delay 5 seconds
Function can be turn off
Voltage Thermal Drift:
Less than 3% at temperature range -40 to +70 °C
Under-Frequency Knee Point Thermal Drift:
Less than +/-0.1 Hz at -40 to +70 °C
Dimension:
121.0 (L) x 81.0 (W) x 44.5 (H) mm
4.76 (L) x 3.19 (W) x 1.75 (H) inch
Weight:
270 g +/-2%
0.6 lb +/-2%
Note:
Original Parts do not provide return or exchange service.
