Overhaul Rebuild Kit for Kubota D1005 Engine
YOU MAY ALSO NEED
Overhaul Rebuild Kit for Kubota D1005
Note:
The Cylinder Liner is Semi-finished type
Application:
Models with Kubota D1005 Engine
Refer Kubota Tractor B21, B2320DT, B2320DTN(-1), B2320DTWO, B2320HSD, B2320HSDN, B2710HSD, B7510D, B7510DN, B7510HSD, B7510HSDTR, BX2660D, F2260, F3060, ZD25F, ZD326P, ZD326RP, ZD326S
Piston Part Number:
16050-21113,1605021113
Piston Ring Part Number:
16271-21050,1627121050
Cylinder Liner Part Number:
16050-02310,1605002310
Specification:
Piston Size:
Total Length(TL):68.5mm
Diameter:
76mm
Cylinder Liner Size:
Total Length(TL): 145.0mm
Inner Diameter(ID): 76.0mm
Outer Diameter(OD): 79.5mm
Application:
Models with Kubota D1005 Engine
Refer Kubota Tractor B21, B2320DT, B2320DTN(-1), B2320DTWO, B2320HSD, B2320HSDN, B2710HSD, B7510D, B7510DN, B7510HSD, B7510HSDTR, BX2660D, F2260, F3060, ZD25F, ZD326P, ZD326RP, ZD326S

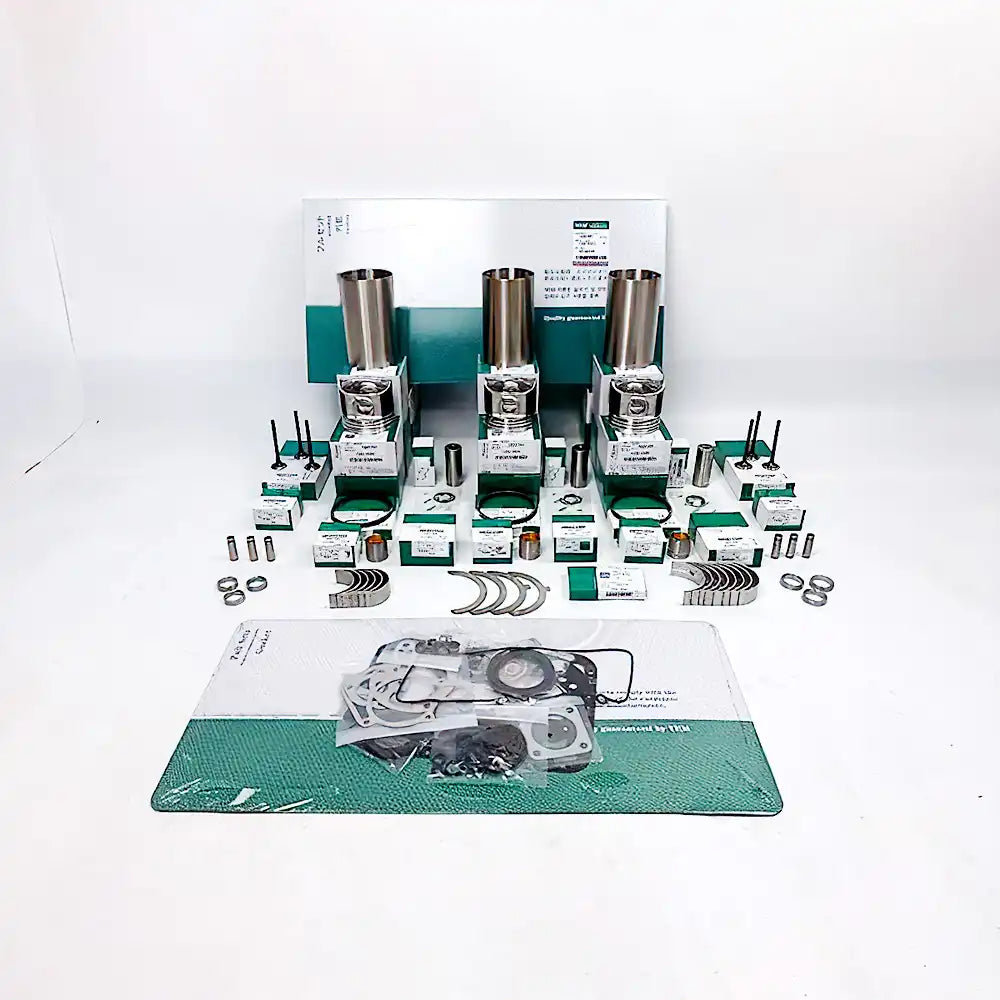

Including:
1 Set of Overhaul Gasket Kit
3 Cylinder Liners,Semi-finished product
3 Pistons,STD3
Piston Pins
6 Snap Rings
3 Rod Bushings
Set Rings For 3 Pistons,STD
1 Set of Main Bearings
1 Set of Rod Bearings
1 Set of Thrust Bearings
3 Intake Valves
3 Exhaust Valves
6 Valve Guides
3 Intake Valves Seats
3 Exhaust Valves Seats
·Easy repair with less maintenance.
·The Overhaul Rebuild Kits is manufactured to meet expectations for fit, form, and function.
·Please ensure this product will fit your vehicle by checking the photos or the part number with your old item before buying.
