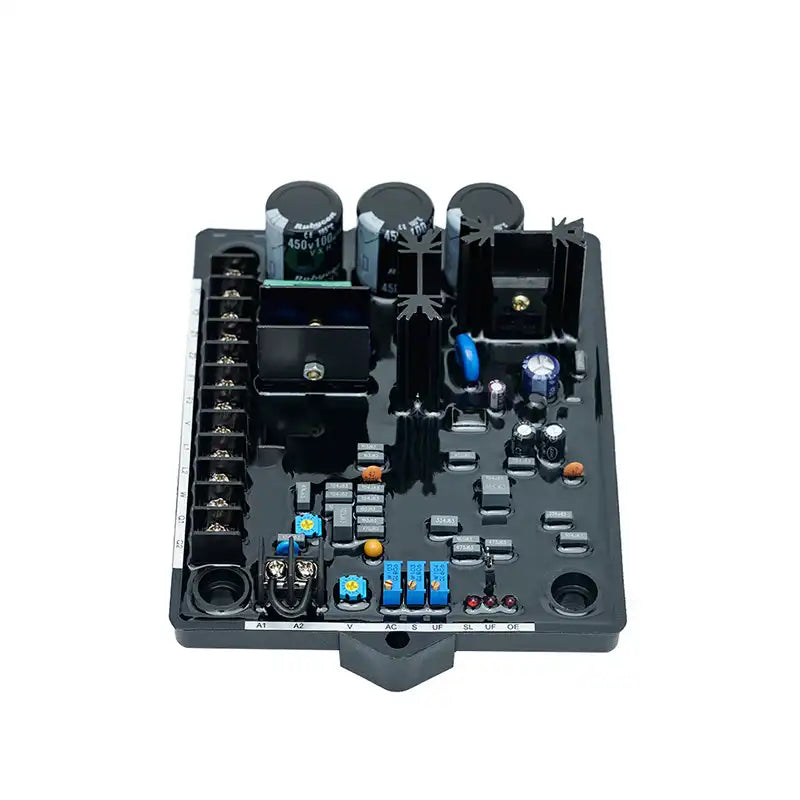

Voltage Regulator AVR R150 for Leroy Somer

Voltage Regulator AVR R150 for Leroy Somer

Part Number:
Leroy Somer Voltage Regulator 5014127
Leroy Somer Voltage Regulator 40022682

Applications:
The R150 is used on the following Leroy Somer Alternators:
TAL046 A, TAL046 B, TAL046 C, TAL046 D, TAL046 E, TAL046 F, TAL046 G, TAL046 H, TAL046 J
TAL047 A, TAL047 B, TAL047 C, TAL047 D, TAL047 E, TAL047 F
TAL049 B, TAL049 C, TAL049 D, TAL049 E

Specification:
1) Sensing input
- Voltage: 240 V AC ±10% for 1 phase, 380 V up to 480 V AC ±10% for 3 phase, 2 line sensing AVR Senses true average of the line to line waveform. Use Resistor (SMD) network for trouble free sensing & control of sensed voltage / regulation.
2) Input power
- Voltage: 415V for 3 phase and 240V for 1 phase
- Frequency: 50/60 Hz
3) Output power
- Voltage: 105 V DC at 240V AC Input
- Current:
6 Amps DC Continuous
8 Amps for 30sec. (when allowed by field resistance)
4) Operating temperature: -20oC to +70oC
5) Storage temperature: -40oC to +80oC
6) Voltage adjustment: min ± 10% of rated voltage.
7) Stability adjustment: adjustable to get Steady state Stability good transient response.
8) Remote Voltage adjustment: to get ±10% of set terminal voltage (with 2W / 2.5W , 1 Watt pot).
9) Droop for parallel operation: 4% droop for 5 Amps from U phase.
10) Auxiliary input A1 & A2: ±4.5V DC will give change in terminal voltage by ±10%.
11) Under frequency roll - off adjustment: available below 46 Hz for 50 Hz & below 56 Hz for 60 Hz.
12) Voltage Build up: ≥ 2 Volts (L-N)
13) Voltage regulation: ± 0.8% at AVR terminals.
14) Thermal drift: ± 1% for 30o C change in temperature.
15) Response time: less than 50 milli seconds.
16) Closed loop response: typically 0.5sec to recover to 98% of the set voltage for a field forcing ratio of 1:2.
17) Sense Loss protection: voltage should collapse, when the sensing circuit is open.
18) Over excitation protection: 10V DC to 85V DC. Set point : 60 V DC
19) Fuse for protection: 6 Amps, 240 Volts AC.
20) All potentiometers: multi-turn except Droop pot (Droop-single turn)
21) Sealing of Potentiometers: except V – trim pot all pots are sealed.
22) Frequency roll off indicator: LED provided (UF).
23) Sense Loss indicator: LED provided (SL).
24) Over excitation indicator: LED provided (OE).
25) Protection on the devices: Suitable R-C Snubber to be provided for the device used to protect this from surge.
26) Potting/ Encapsulation Details: the components on the AVR should be completely encapsulated with suitable PU resin compound to absorb transients / vibrations while in operation.
27) Excitation details of alternator: (typical)
- Full load:
Excitation Voltage: 40 to 50 Volts
Excitation Current: 2.5 to 5.0 Amps
28) Terminal marking: refer drawing
29) AVR Testing: Burn in test, Thermal cycling, Static test, Voltage variation check, Build up test, FRO check, Stability check, QDC check, Remote voltage check, DC input voltage check.
