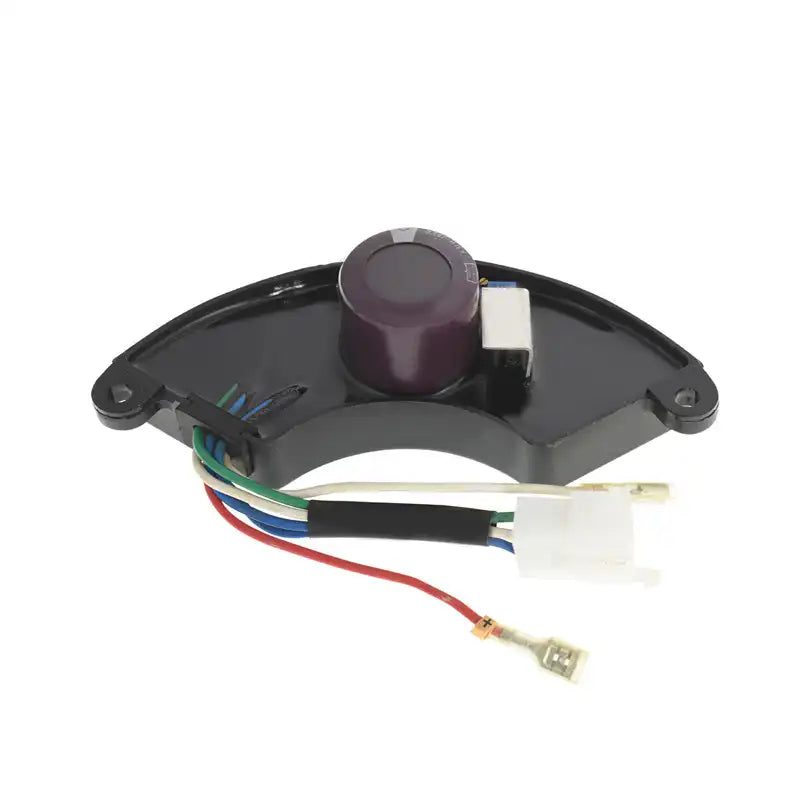

Automatic Voltage Regulator AVR DS358-5D for Generator Genset
U HEEFT MOGELIJK OOK NODIG
Automatic Voltage Regulator AVR DS358-5D for Generator Genset
Part Number:
DS358-5D, DS3585D
See Details:
AVR Automatic Voltage Regulator DS358-5D 6 wire
Product Description
AVR Automatic Voltage Regulator DS358-5D 6 wire
Automatic Voltage Regulator
Single Phase : 6 Wire Connection (4 block connector, 2 to brushes)
The AVR is essential to your Generator producing electricity. It is required to excite the Alternator windings and reduce voltage surges. An AVR should last for a minimum of 5000 hours, but can burn out if any of the following occur:
Generator user has tried to draw more power than the Generator can produce.
A surge has happened on equipment and the capacitor has blown to protect the Alternator.
The Alternator has got damp and electricity has surged across the windings. (Dry out before running. See our "Manuals" section.
Product Features:
Built-in Full-Wave Output Bridge Rectification.
Voltage Output Increase with Loading.
Stable Voltage Output with Negative Voltage Feedback.
Over Voltage, Over Current, Over Load and Short Circuit Protection.
Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.
Technical Specifications:
Maximum Output: DC 90V 3.5A.
Excitation Voltage: 90V ~ 110V.
Feedback Voltage: 14V ~ 24V with an Average of 18V(Sampling Voltage).
Frequency: 50/60Hz.
AC Voltage Output: 120V/240V.
Auto Voltage Adjusting Accuracy: ≤ ±1%.
Maximum Temperature Rise: 130C or 266F.
Continuous Working Time: ≥ 20 Hours.
Installation-Center Distance: 140 ± 1mm (about 5.5 in).
| Part Number | DS358-5D,DS3585D |
